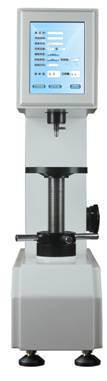

The HR-150DT is an advanced electric loading hardness tester featuring touch screen operation and closed-loop control system. Designed for precision hardness measurement across various materials and industrial applications.
Ideal for industrial production and quality control of ferrous/non-ferrous metals, hardened steel, tempered steel, annealed steel, carbide materials, powder metallurgy, and thermal spray coatings.
| Model | HR-150DT |
|---|---|
| Initial Load | 10kgf (98.07N) |
| Total Load | 60kgf (588N), 100kgf (980N), 150kgf (1471N) |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Hardness Range | HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125 |
| Dwell Time | 0-99s |
| Resolution | 0.1HR |
| Load Error | <0.5% |
| Display | LCD with 8-inch screen |
| Data Storage | 60 test results, built-in printer, RS-232 interface, optional USB storage |
| Conversion Scales | Superficial Rockwell, Brinell, Vickers |
| Max Specimen Height | 200mm |
| Indenter to Wall Distance | 160mm |
| Dimensions | 560*200*800mm |
| Net Weight | 70kg |
| Power Supply | AC220 ±5%, 50-60Hz |
| Name | Quantity | Name | Quantity |
|---|---|---|---|
| Diamond Rockwell Indenter | 1 | 1.5875mm Ball Indenter | 1 |
| Hardness block (HRC High Low 2, HRB 1) | 3 | Large, Medium, "V" shaped Testing Table | 1 each |
| Weights (A,B,C) | 1 each | Dust bag | 1 |
| U disk, touch pen | 1 each | Regulating screw | 4 |
| Power line | 1 | 2A fuse | 1 |
| Operation Manual | 1 | Calibration certificate | 1 |
